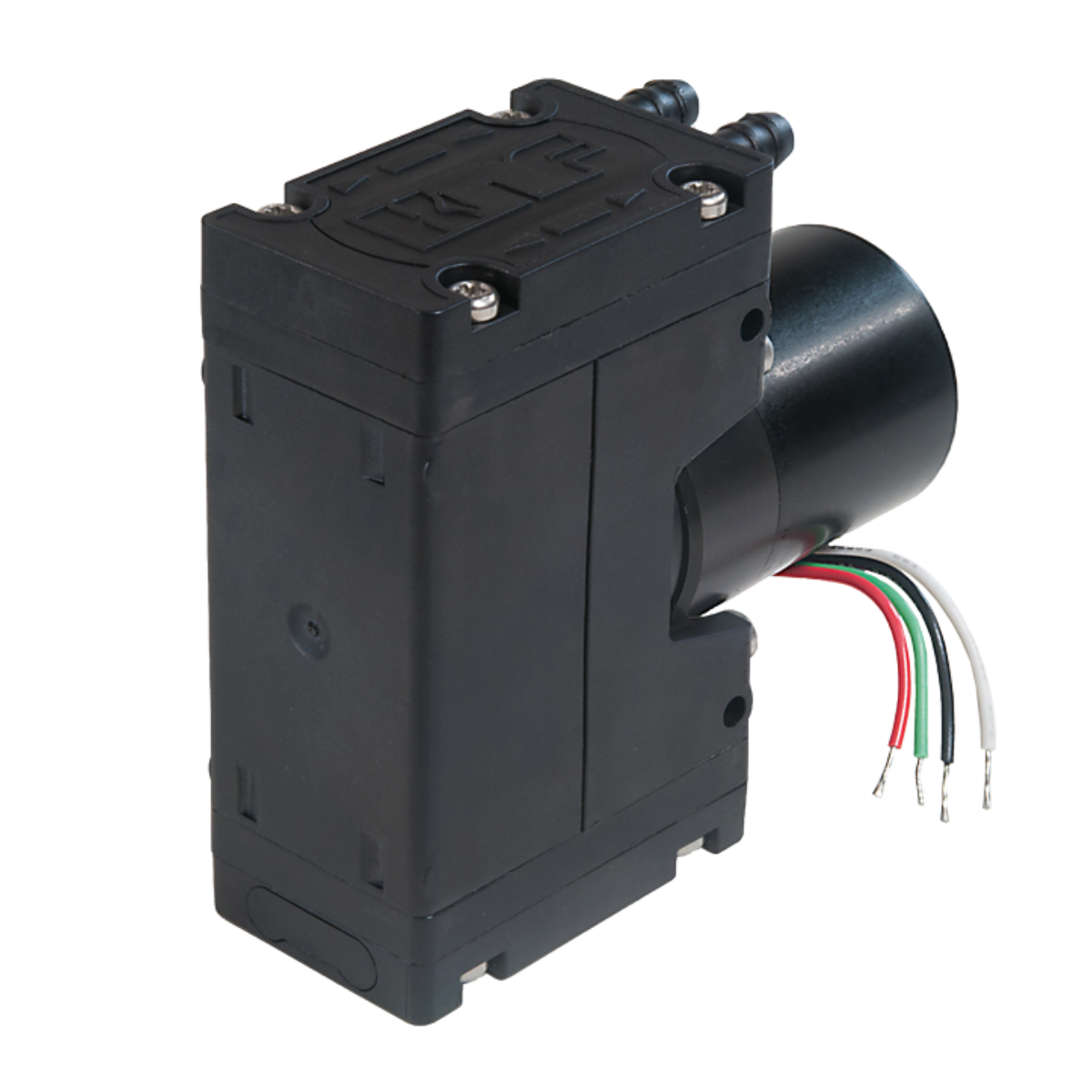

KNF NMS 030

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 12 l/min
  • Pressure (max.): 0.2 bar (rel.)
  • Vacuum (max.): 220 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.



Technical Details

Flow Rate (max.) 12 l/min
Pressure (max.) 0.2 bar (rel.)
Ultimate Vacuum (max.) 220 mbar (abs.)
Valve Material Options EPDM
Diaphragm Material Options EPDM
Pump Head Material Options PPS
Motor Type Options Brushless DC



Features

Benefits
  • Excellent reliability
  • High performance-to-size ratio
  • Low sound level
  • Contamination free transfer
  • Maintenance-free
  • Highly resistant to aggressive media
  • Can run dry
  • Adjustable performance
  • Digitally adjustable motor
Special Features
  • Diaphragm pump



Applications

  • Inkjet printing
  • Medical equipment
  • Analytical instruments
  • Lab equipment
  • Agriculture
  • Automotive
  • Climate technology
  • Gas analytics
  • Emission monitoring
  • Food & beverage industry
  • Security and defense
  • Vacuum technology
  • Fuel cells
  • Cleaning and disinfection
