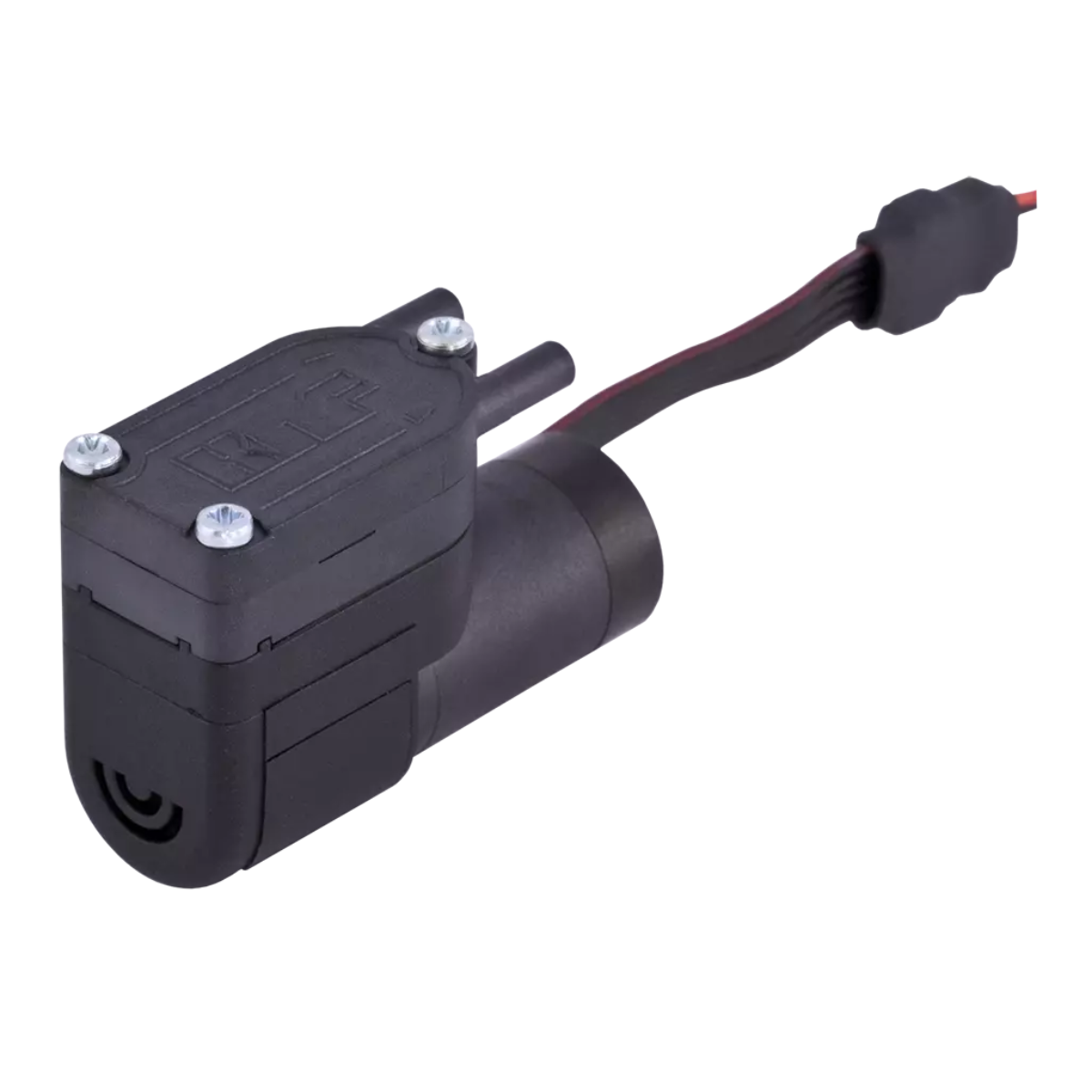

KNF NMS 020

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 1.7 l/min
  • Pressure (max.): 0.5 bar (rel.)
  • Vacuum (max.): 500 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.



Technical Details

Flow Rate (max.) 1.7 l/min
Pressure (max.) 0.5 bar (rel.)
Ultimate Vacuum (max.) 500 mbar (abs.)
Valve Material Options EPDM
Diaphragm Material Options EPDM
Pump Head Material Options PPS
Motor Type Options DC, Brushless DC



Features

Benefits
  • Low pulsation
  • Excellent reliability
  • High performance-to-size ratio
  • Low sound level
  • Contamination free transfer
  • Maintenance-free
  • Highly resistant to aggressive media
  • Self priming
  • Can run dry
  • Flow-tight in Off mode (NC valve)
  • Digitally adjustable motor
Special Features
  • Diaphragm pump

Applications

  • Emission monitoring
  • Inkjet printing
  • Medical equipment
  • Analytical instruments
  • Agriculture
  • Automotive
  • Climate technology
  • Gas analytics
  • Food & beverage industry
  • Security and defense
