SKU:

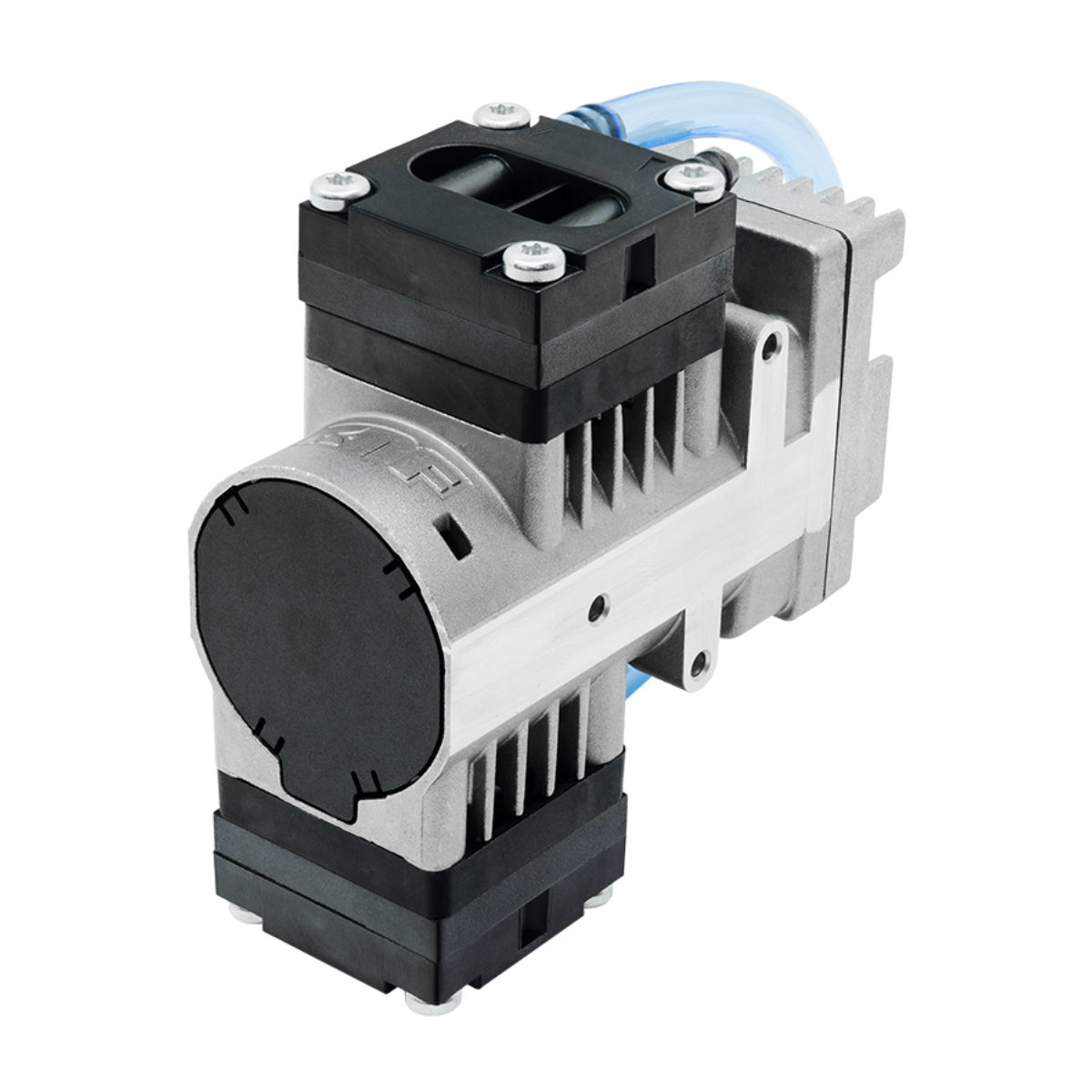

KNF NMP 830.1.2
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 5.6 l/min
- Pressure (max.): 1.5 bar (rel.)
- Vacuum (max.): 55 mbar (abs.)
KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.
Technical Details
| Flow Rate (max.) | 5.6 l/min |
| Pressure (max.) | 1.5 bar (rel.) |
| Ultimate Vacuum (max.) | 55 mbar (abs.) |
| Valve Material Options | EPDM |
| Diaphragm Material Options | EPDM |
| Pump Head Material Options | PPS |
| Motor Type Options | Brushless DC |
Features
Benefits
- Excellent reliability
- High performance-to-size ratio
- Low sound level
- Contamination free transfer
- Maintenance-free
- Can run dry
- Low pulsation
- FDA-approved materials available
- Flow-tight in Off mode (NC valve)
- Digitally adjustable motor
- Adjustable performance
Special Features
- Diaphragm pump
- Low pulsation
Applications
- Analytical instruments
- Emission monitoring
- Fuel cells
- Gas analytics
- Inkjet printing
- Lab equipment
- Medical equipment
- Security and defense
- Vacuum technology
- Agriculture
- Automotive
- Cleaning and disinfection
- Climate technology
- Food & beverage industry
- Semi-conductors
