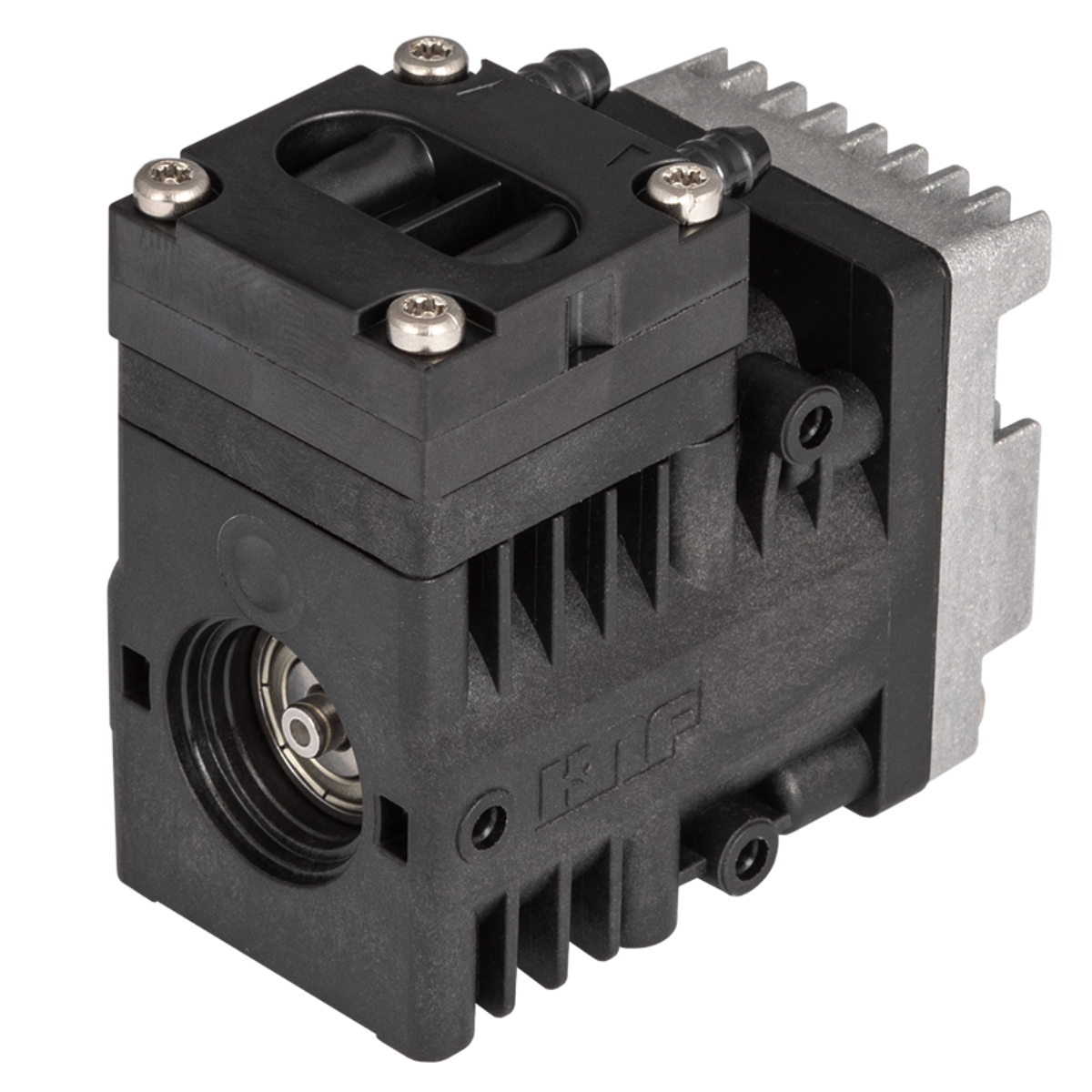

KNF NMP 830

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 3.1 l/min
  • Pressure (max.): 1.4 bar (rel.)
  • Vacuum (max.): 250 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.



Technical Details

Flow Rate (max.) 3.1 l/min
Pressure (max.) 1.4 bar (rel.)
Ultimate Vacuum (max.) 250 mbar (abs.)
Valve Material Options CR, FKM, FFKM, EPDM
Diaphragm Material Options EPDM, FKM, PTFE coated
Pump Head Material Options PPS
Motor Type Options DC, Brushless DC



Features

Benefits
  • Excellent reliability
  • High performance-to-size ratio
  • Low sound level
  • Contamination free transfer
  • Maintenance-free
  • Self priming
  • Can run dry
  • Low pulsation
  • FDA-approved materials available
  • Flow-tight in Off mode (NC valve)
  • Digitally adjustable motor

Special Features

  • Diaphragm Pump


Applications

  • Inkjet printing
  • Medical equipment
  • Analytical instruments
  • Lab equipment
  • Agriculture
  • Automotive
  • Chemical industry
  • Climate technology
  • Gas analytics
  • Emission monitoring
  • Food & beverage industry
  • Security and defense
  • Vacuum technology
  • Fuel cells
  • Cleaning and disinfection
