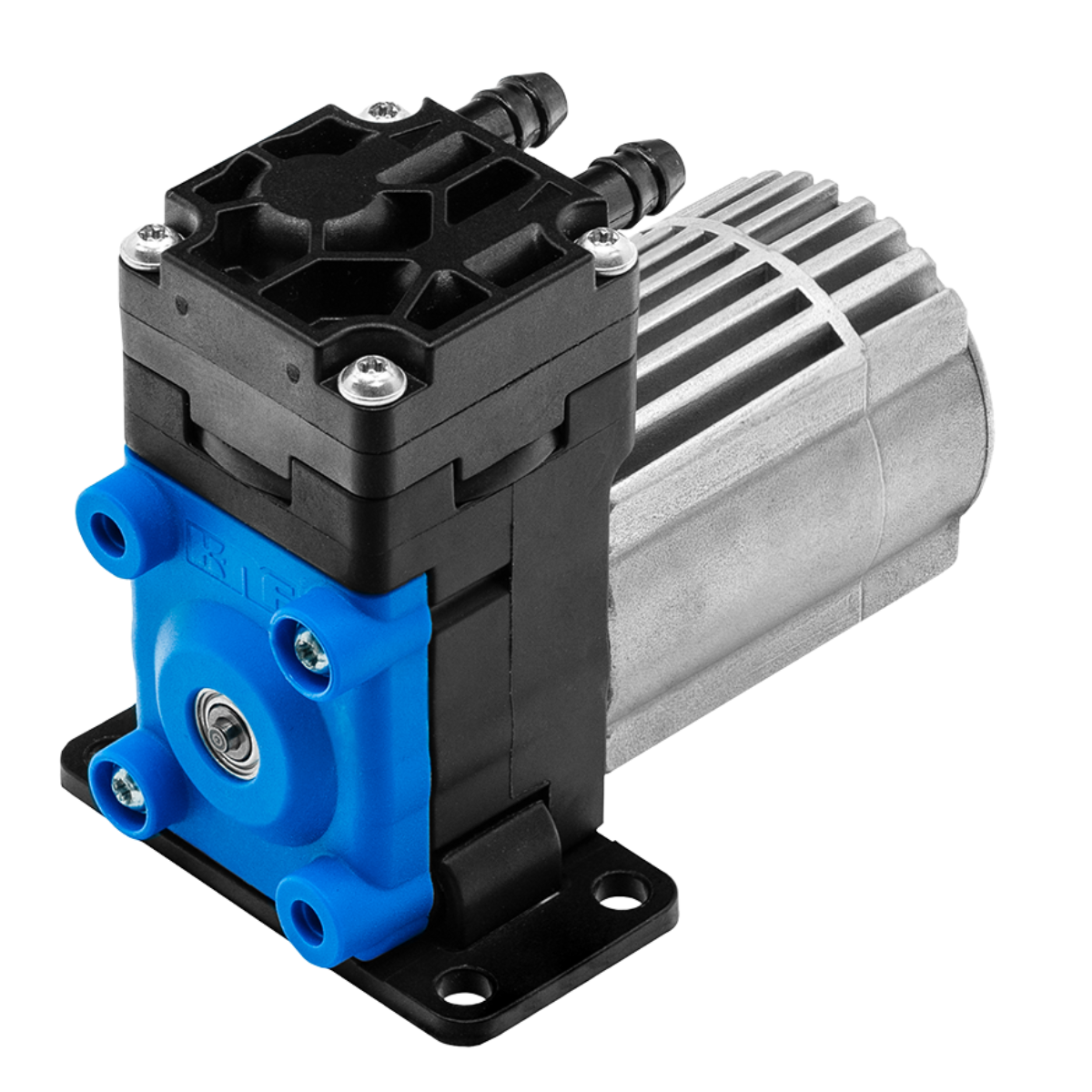

KNF NMP 820

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 2.1 l/min
  • Pressure (max.): 1.2 bar (rel.)
  • Vacuum (max.): 330 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.


Technical Details

Flow Rate (max.) 2.1 l/min
Pressure (max.) 1.2 bar (rel.)
Ultimate Vacuum (max.) 330 mbar (abs.)
Valve Material Options EPDM
Diaphragm Material Options EPDM
Pump Head Material Options PPS
Motor Type Options DC, Brushless DC


Features

Benefits
  • Can run dry
  • Contamination free transfer
  • Excellent reliability
  • FDA-approved materials available
  • Flow-tight in Off mode (NC valve)
  • High performance-to-size ratio
  • Low pulsation
  • Low sound level
  • Maintenance-free
  • Self priming

Special Features

  • Diaphragm pump


Applications

  • Analytical instruments
  • Chemical industry
  • Emission monitoring
  • Fuel cells
  • Gas analytics
  • Inkjet printing
  • Lab equipment
  • Medical equipment
  • Security and defense
  • Vacuum technology


Downloads

Datasheet NMP 820
