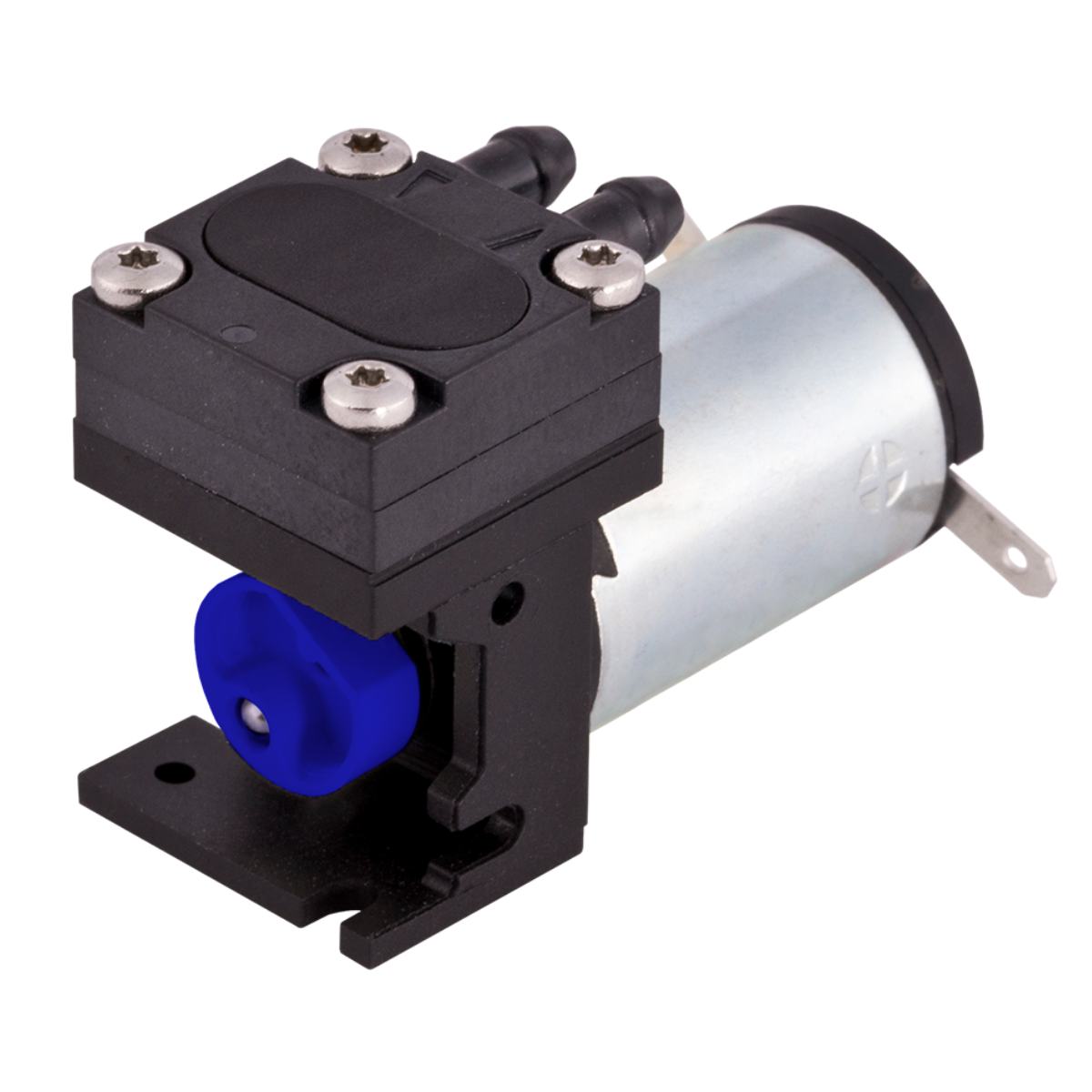

KNF NMP 05

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 0.45 l/min
  • Pressure (max.): 0.45 bar (rel.)
  • Vacuum (max.): 500 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.


Technical Details

Flow Rate (max.) 0.45 l/min
Pressure (max.) 0.45 bar (rel.)
Ultimate Vacuum (max.) 500 mbar (abs.)
Valve Material Options EPDM
Diaphragm Material Options EPDM
Pump Head Material Options PPS
Motor Type Options DC, Brushless DC


Features

Benefits
  • Excellent reliability
  • High performance-to-size ratio
  • Low sound level
  • Contamination free transfer
  • Maintenance-free
  • Self priming
  • Can run dry
  • Low pulsation
  • Flow-tight in Off mode (NC valve)
  • Digitally adjustable motor

Special Features

  • Diaphragm pump


Applications

  • Medical equipment
  • Analytical instruments
  • Gas analytics
  • Emission monitoring
  • Food & beverage industry
  • Security and defense


Downloads

Datasheet NMP 05
Operating Manual NMP 05
3D CAD Model NMP 05
