SKU:

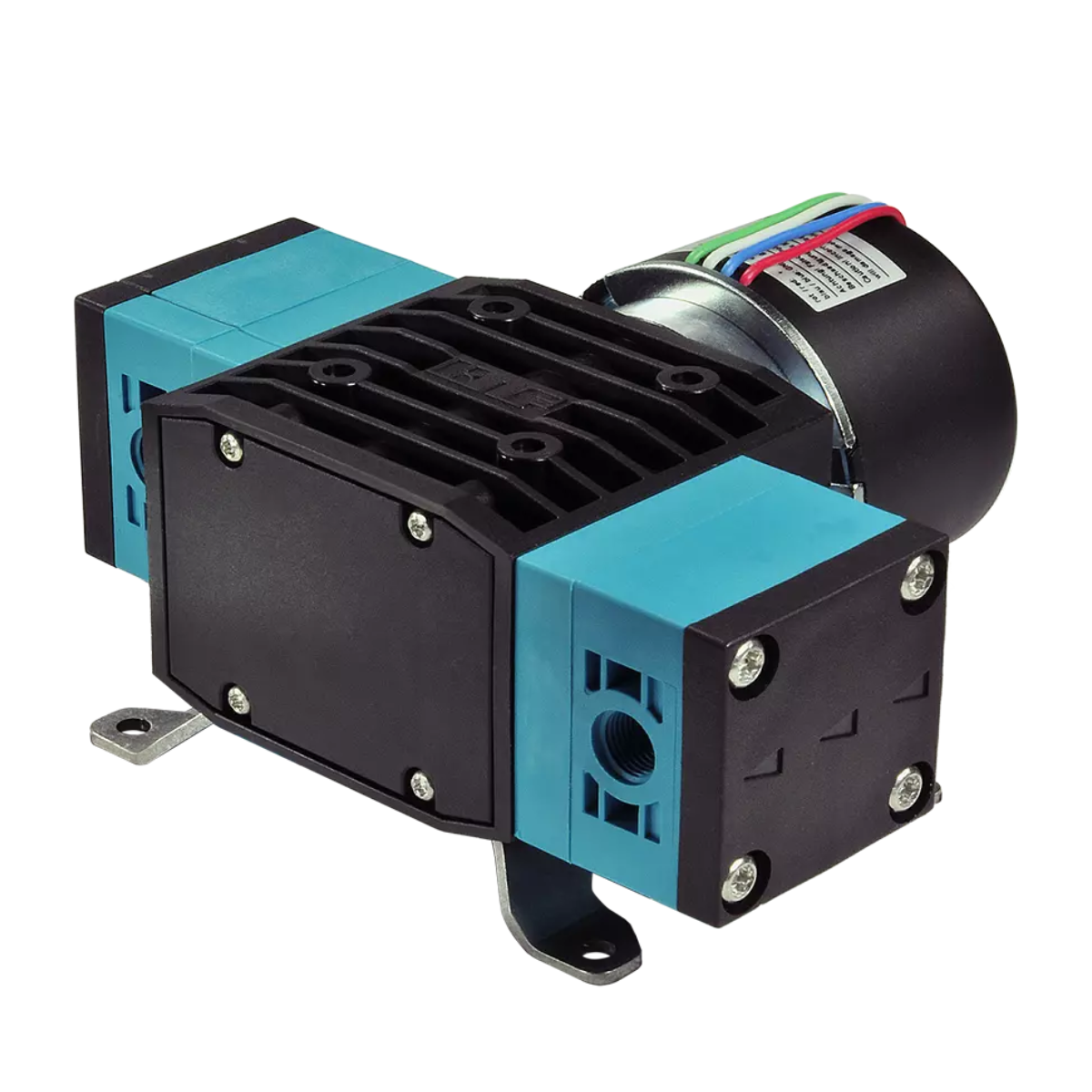

KNF NFB 100
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 2.6 l/min
- Pressure (max.): 1 bar (rel.)
- Suction Height (max.): 3 mH₂O
KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Technical Details
| Flow Rate (max.) | 2.6 l/min |
| Pressure (max.) | 1 bar (rel.) |
| Suction Height (max.) | 3 mH₂O |
| Valve Material Options | EPDM, FFKM |
| Diaphragm Material Options | PTFE |
| Pump Head Material Options | PP, PVDF |
| Motor Type Options | Brushless DC |
Features
Benefits
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Highly resistant to aggressive media
- Self priming
- Available with integrated pressure relief valve
- Can run dry
- NSF certified
- Adjustable performance
- Digitally adjustable motor
Special Features
- NSF certified
- Integrated pressure relief valve
Applications
- Inkjet printing
- Medical equipment
- Analytical instruments
- Lab equipment
- Cleaning and disinfection
Downloads
3D CAD Model NFB 100Warranty & Service
