SKU:P12C

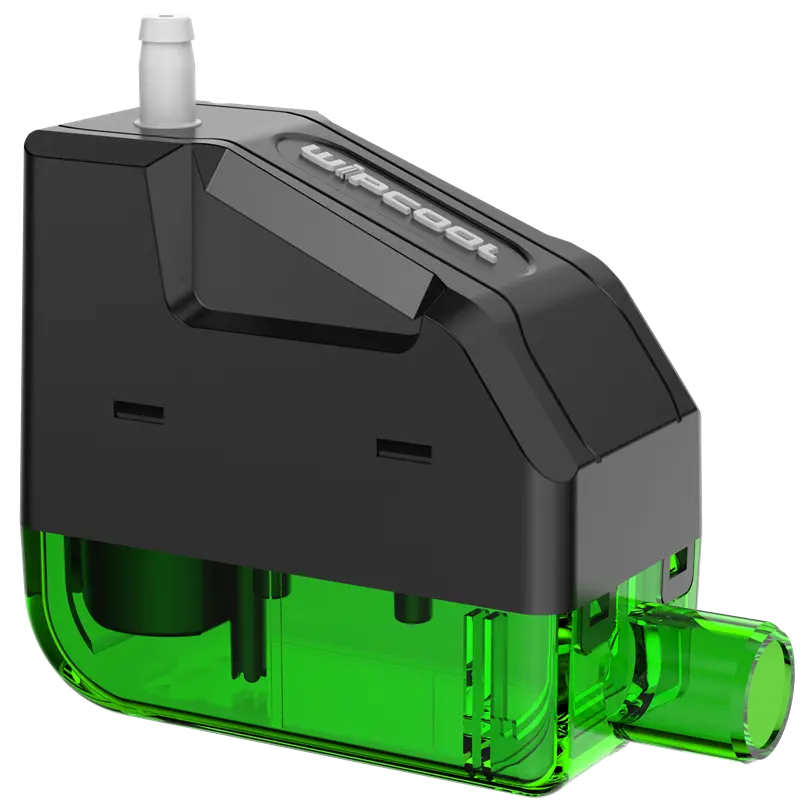

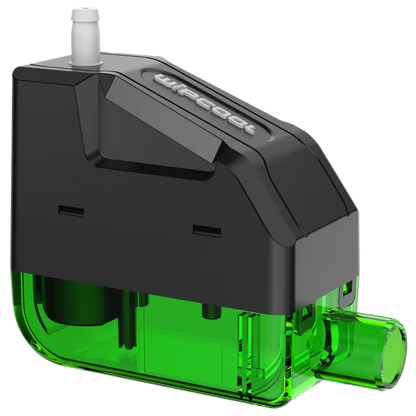

WIPCOOL CORNER MINI CONDENSATE PUMPS
THIS PRODUCT IS AVAILABLE THROUGH OUR RESELLERS
Description
Features:
Reliable&durable, Silence running
·Compact size, integral design
·Connect the socket quickly, easy maintenance
·High quality denoise design, Quiet&no vibration
Product Description
The JAVP12C corner condensate pump applied the integrated design and can be perfectly installed in the left and right trunking elbow. It is mainly used for domestic split air conditioners. Suitable for the device which cooling capacity under 30,000 btu/hr.
Built-in safety switch and applied unique motor balance technology, ensuring that the pump can operate silently for a long time and guarantee the safety drainage.
Technical Data
| Model | JAVP12C |
| Voltage | 100v-230V~/50-60Hz |

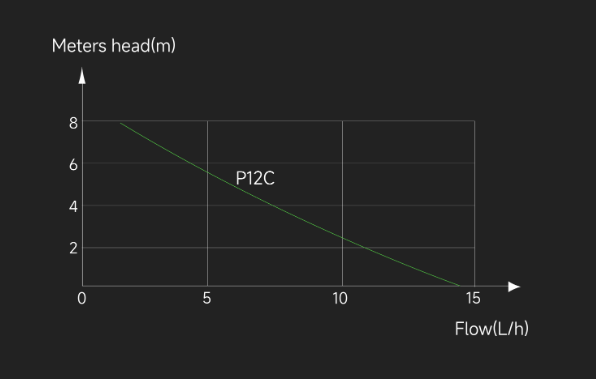

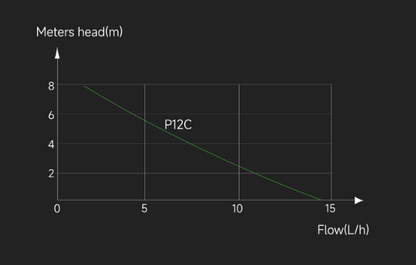

| Discharge Head(max.) | 7m[23ft] |
| Flow Rate(max.) | 12L/h(3.2GPH) |
| Tank Capacity | 45ml |
| Mini Splits up to | 75,000btu/hr |
| Sound Level at 1m | 19dB(A) |
| Ambient Temp. | 0℃-50℃ |
