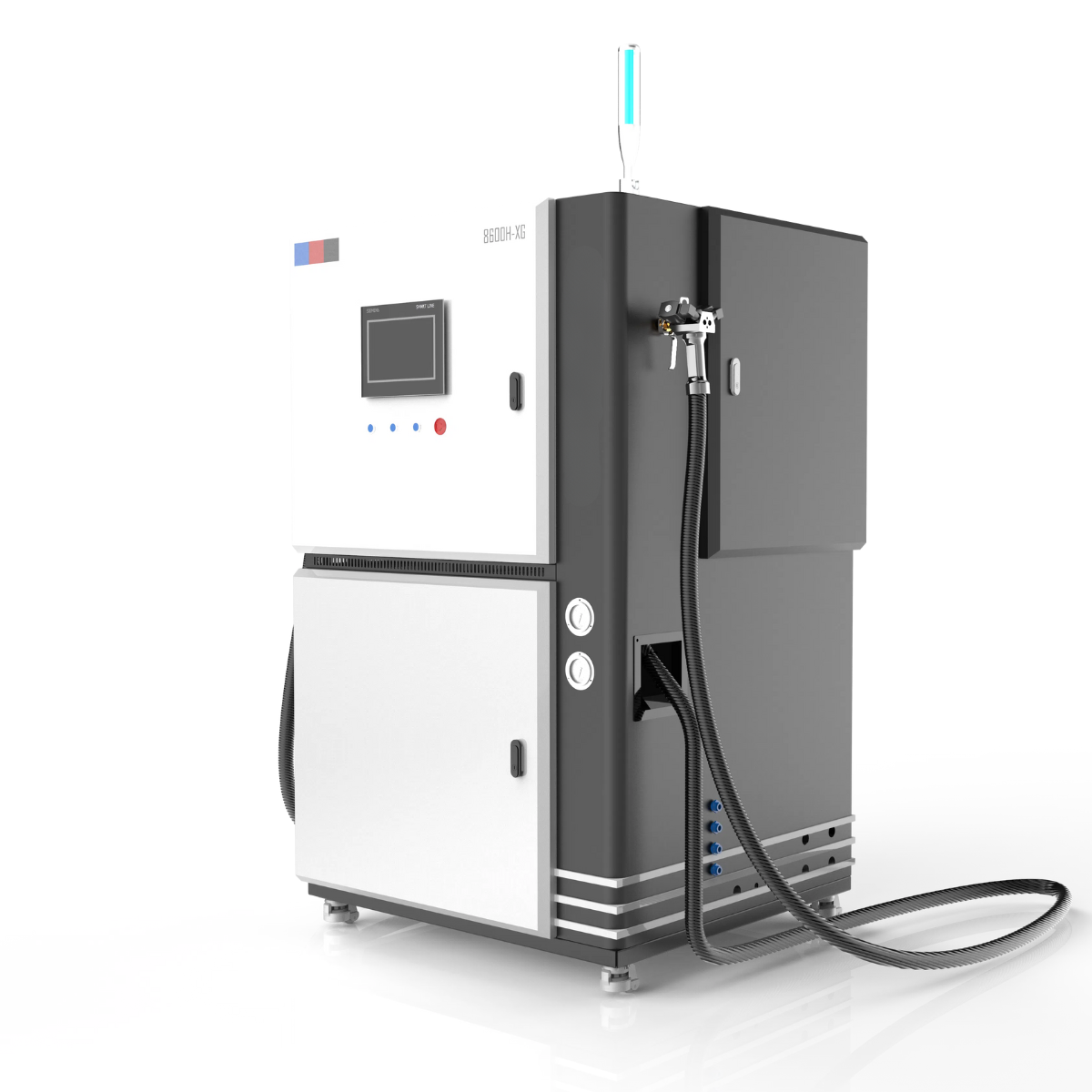

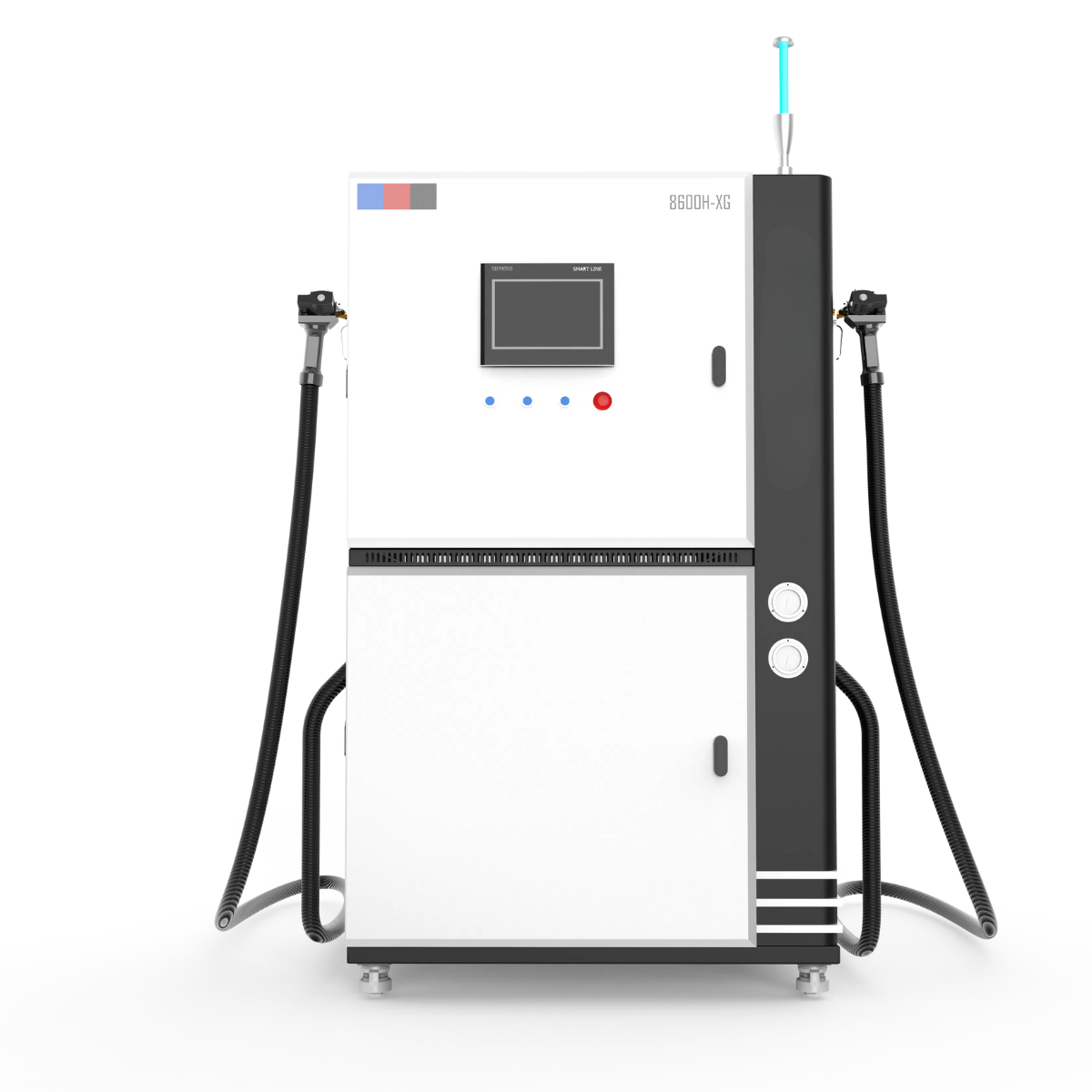

REFRIGERANT CHARGING MACHINE (T TYPE) CM86-T

 Description

CM86-T refrigerant recovery, charging filling machine series is specially designed for fast-speed refrigerant charging at the refrigerator production line. It features by high speed of charging and accuracy. multiple functions, etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.

Application

Refrigerator、Air Condition、Chiller、Freezer、Water Dispenser

Feature

• Adopt CNC technology allows the data processing with accurate and easy operation
• Suitable for various refrigerants R134a, R22, R410A, R600A etc.
• Siemens PLC and a colourful touch screen control system.
• Adopt high high-accuracy flowmeter for high filling accuracy
• The pneumatic booster to ensure stable pressure and supplies a large charging quantity.
• The continuous charging/filling quantity up to 99999g
• There's an automatic prompt function when the cylinder is lacking refrigerant
• The vacuum time and inspection leak time can be adjusted according to your requirements.
• This machine has a vacuum, leak detection, charging/filling, and recovery refrigerant function

Specification

• Filling accuracy is ≤ ± 0.5%
• Horsepower:2HP
• Voltage：380V 50Hz/220V 50Hz
• Required Air Supply Pressure:0.6-0.8Bar
• Suitable Refrigerant: R134/R410A/R32/R600/R290/R407C
• Charging Speed: ≥100g/s
• Charging Gun Injector: Hansen 1/4'' or 3/8'' connector
