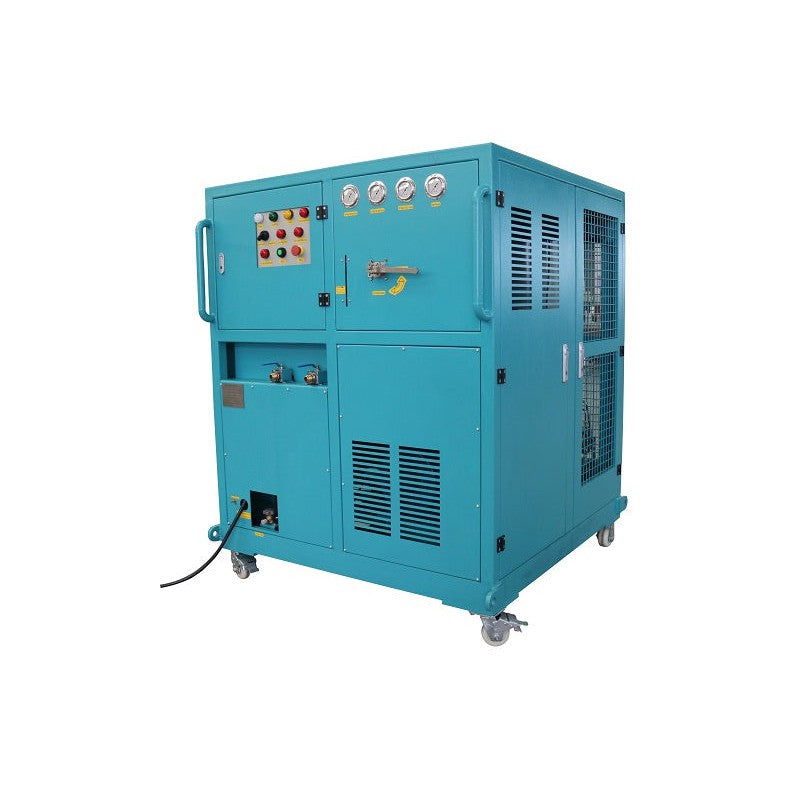

JAVAC REFRIGERANT RECOVERY SYSTEM (EXPLOSION PROOF)

 Description

Products in the CM580-EP refrigerant recovery machine are specially designed for ISO tank vapor and liquid recovery. It adopts a powerful three-stage compressor and suitable for various refrigerant R410A, R32, R600, R22, R134A, etc.

Application

Chiller Maintenance

ISO Tank Recovery

Feature

• Large displacement oil-less compressor to avoid refrigerant cross contamination
• Ultra-fast recovery rate for both liquid and vapor refrigerants
• One valve to exchange vapor recovery and liquid push-pull recovery
• HP and LP shut-off function
• Standard air-cooled and compressor individual cooling for high efficiency heat exchange rate
• Deep vacuum degree allows recovery of more refrigerant to avoid refrigerant loss
• Equipped with explosion proof motor and control box for flammable refrigerant
• Continuously running for 24 24-hour duty cycle
• Low RPM with a large compressor flow rate make it durable with a long working life
• ISO Tank vapor recovery time 4hours

Specification

• Motor:25HP
• Compressor: Oil-Less Piston Three-Cylinder
• Compressor Flow Rate:57m³/h
• Vapor Recovery Rate:300Kg/h
• Liquid Push Pull Recovery Rate:15000Kg/h
• Cooling Type: Air Cooled, Water Cooled
• Voltage:380V 50Hz 3PH
