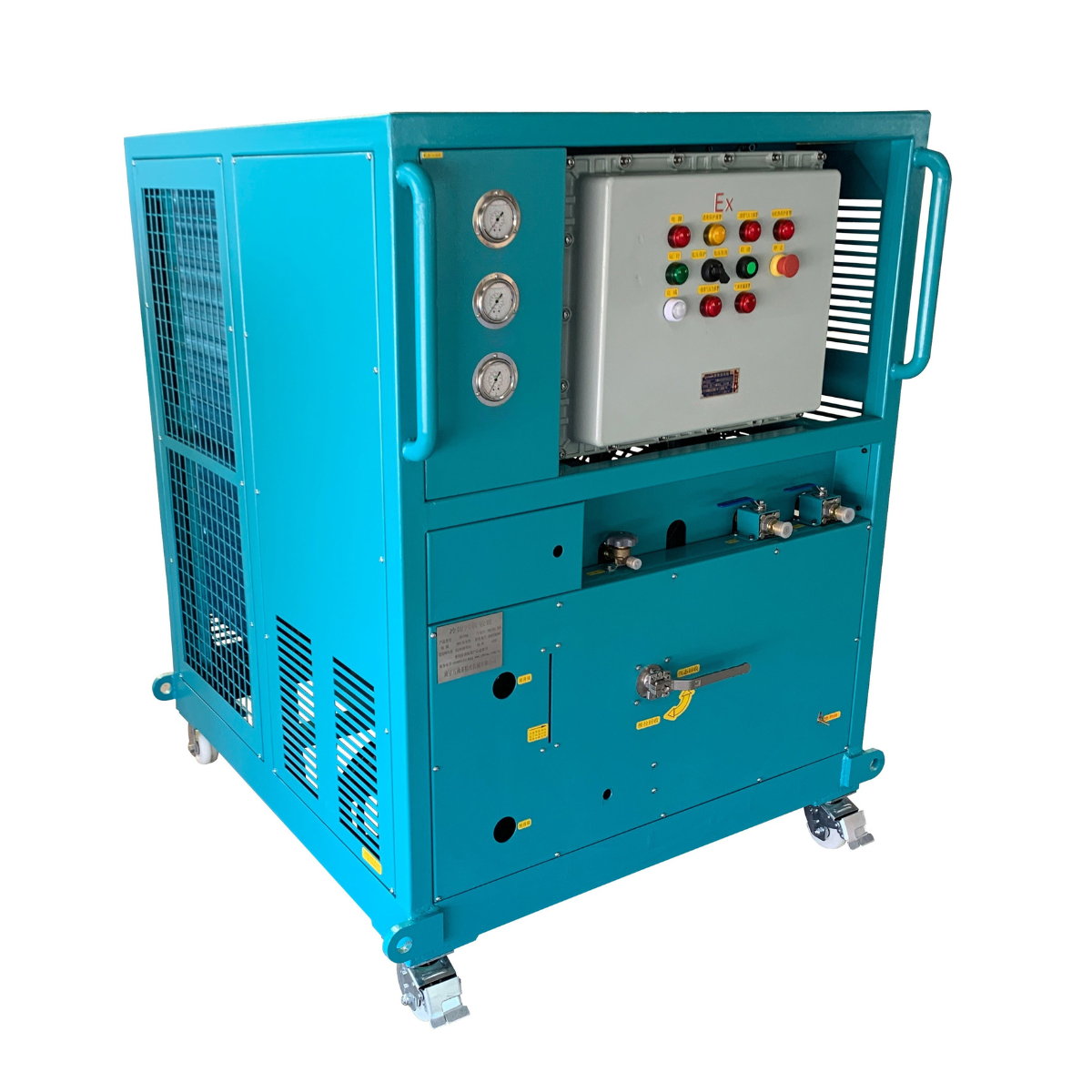

REFRIGERANT RECOVERY MACHINE (EXPLOSION PROOF) CMT1800EP

 Description

Products in the CM-T1800EP explosion-proof refrigerant recovery series is specially designed for flammable refrigerant. The whole machine is strictly designed according to the ATEX explosion-proof standard

Application

Chiller Maintenance

ISO Tank residual gas recovery

Feature

• ATEX Certificated
• Stainless steel oil-less compressor to avoid refrigerant cross-contamination
• Ultra-fast recovery rate for both liquid and vapor refrigerants
• One valve to exchange vapor recovery and liquid push-pull recovery
• HP and LP shut-off function
• Standard air-cooled and compressor individual cooling for high efficiency heat exchange rate
• Deep vacuum degree allows recovery of more refrigerant to avoid refrigerant loss
• Equipped with an explosion-proof motor and control box for flammable refrigerant
• Continuously running for 24 24-hour duty cycle
• Low RPM with a large compressor flow rate makes it durable with a long working life

Specification

• Motor:10HP
• Compressor: Oil-Less Piston Three-Cylinder
• Compressor Material: Stainless Steel
• Vapor Recovery Rate:200Kg/h
• Liquid Push Pull Recovery Rate:9000Kg/h
• Cooling Type: Air Cooled
• Voltage:380V 50Hz 3PH
