SKU:CM580

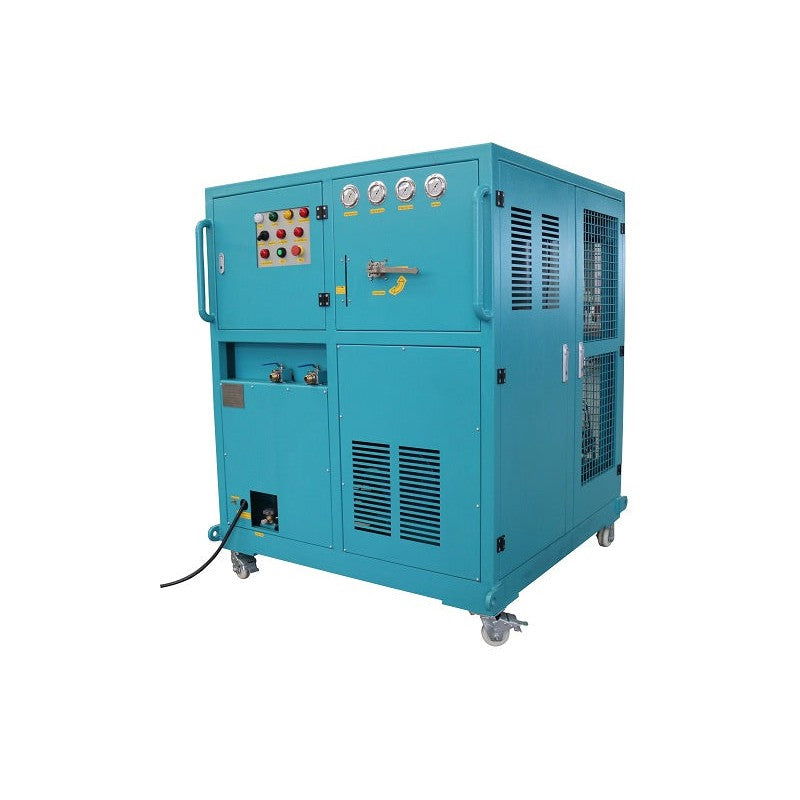

REFRIGERANT RECOVERY SYSTEM CM580
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
Products in the CM580 refrigerant recovery machine are specially designed for ISO tank vapor and liquid recovery. It adopts a powerful three-stage compressor and is suitable for various refrigerants R410A, R32, R600, R22, R134A, etc.
Application
Chiller Maintenance
ISO Tank Recovery
Feature
- Large displacement oil-less compressor to avoid refrigerant cross contamination
- Ultra-fast recovery rate for both liquid and vapor refrigerants
- One valve to exchange vapor recovery and liquid push-pull recovery
- HP and LP shut-off function
- Standard air-cooled and compressor individual cooling for high efficiency heat exchange rate
- Deep vacuum degree allows recovery of more refrigerant to avoid refrigerant loss
- Equipped with explosion-proof motor and control box for flammable refrigerant
- Continuously running for 24 24-hour duty cycle
- Low RPM with large compressor flow rate makes it durable with a long working life
- ISO Tank vapor recovery time 4hours
Specification
- Motor:25HP
- Compressor: Oil-Less Piston Three-Cylinder
- Compressor Flow Rate:57m³/h
- Vapor Recovery Rate:300Kg/h
- Liquid Push Pull Recovery Rate:15000Kg/h
- Cooling Type: Air Cooled, Water Cooled
- Voltage:380V 50Hz 3PH
