SKU:CM20A

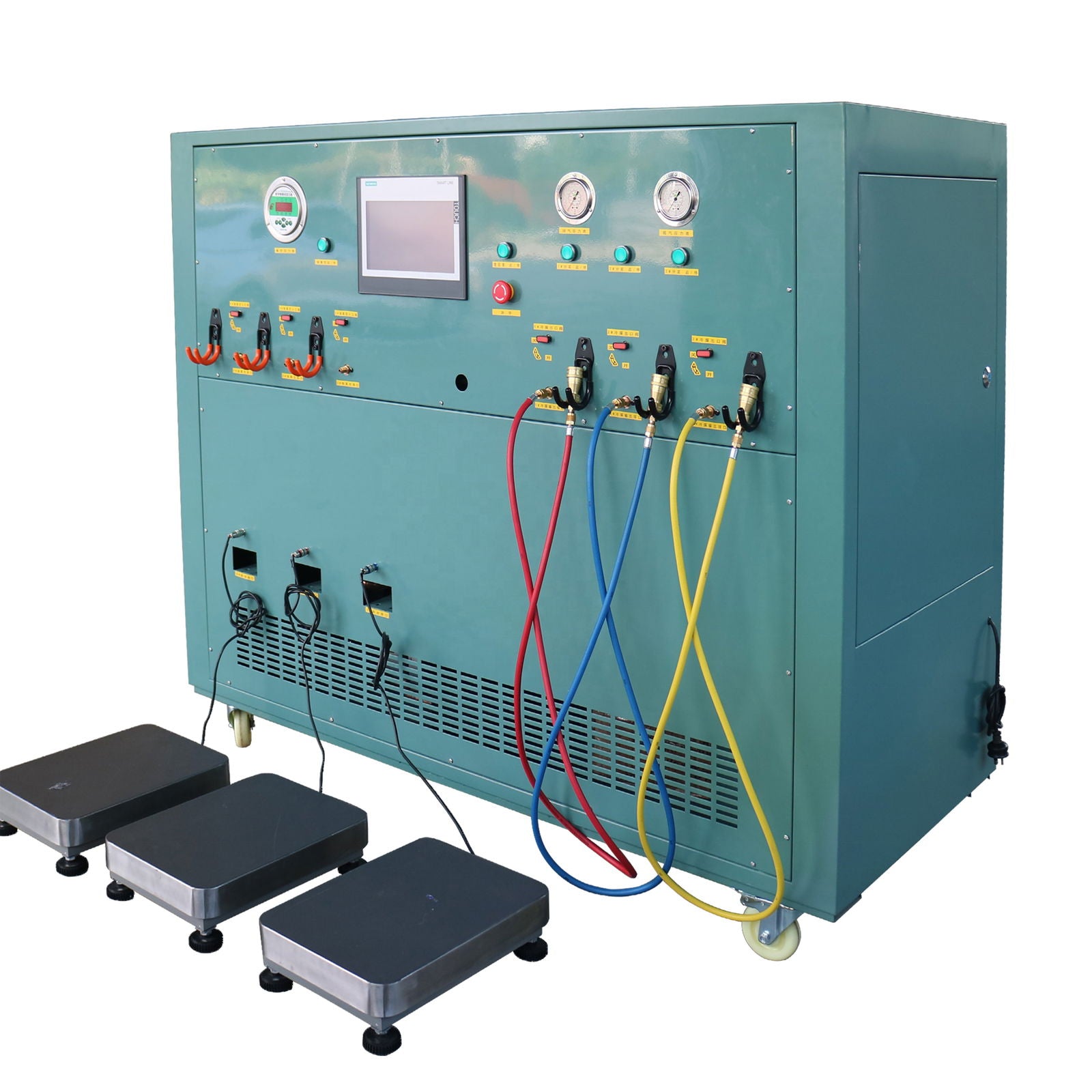

REFRIGERANT FILLING SYSTEM CM20A
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
CM20A Refrigerant filling system is specially designed for filling refrigerant from ISO tank to a small cylinder. The whole system was controlled by Siemens PLC programmer technology for convenient operation. It integrates functions of vacuum and refilling with high efficiency and a fast filling rate.
You just need to set the data, let the machine finish the job
Feature
- Adopt air booster pump can be suitable for filling various refrigerants like R22, R410A, R32 etc.
- Refrigerant filling completely, and auto-stop when the pressure of the supply tank is up to -0.04Mpa
- Integrate functions of vacuum and filling without refrigerant loss
- High Filling accuracy
- Suitable for transferring refrigerants from ISO tank or 1000-400L tank to a 12L-60L cylinder
- Filling certain refrigerant, the machine stop automatically
- Three working-station design, high filling efficiency
- Adopt Siemens PLC programmer for easy operation
- CE Certification
Specification
- Liquid Filling Rate: ≤5Kg/min
- Daily Production Capacity:2-3 ton
- Vacuum Pump Flow Rate:4L/S
- Vacuum Degree:0.3Pa
- Refrigerant Filling Accuracy:0.5%
- Voltage:380V 50Hz 3PH
